1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125

    Buy cheap 1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125 from wholesalers

    Buy cheap 1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125 from wholesalers
    • Buy cheap 1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125 from wholesalers
    • Buy cheap 1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125 from wholesalers
    • Buy cheap 1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125 from wholesalers

    1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125

    Ask Lasest Price
    Price : negotiable
    Payment Terms : Western Union, MoneyGram, T/T
    • Product Details
    • Company Profile

    1-24m Concrete Pump Accessories Flexible Hose Pipe DN50-DN125

    Product Description

    concrete pump steel wire rubber hose and fabric rubber hose


    Basic Info


    Model No.: DN100 Size: DN50-DN125

    Wire Steel Layer: 2/4 Layers Of Wire Collar: SK/FM Flange

    Color: Black Burst Pressure: 240bar

    Service Life: 25000cbm-30000cbm Length: 1-24m

    Original Of Place: Cangzhou City Working Pressure: 85bar-130bar

    Material: Natural Rubber/polyurethane


    Additional Info


    Packaging: wooden cases or pallets Productivity: 80000 pieces per month

    Brand: Putzmeister,schwing,zoomline,sany,junjinand so on Transportation: Ocean,Land,Air

    Place of Origin: cangzhou Supply Ability: 5000 pieces each time

    Certificate: ISO HS Code: 87089960

    Port: Tianjin Port,Shanghai Port


    Product Description


    There are many different kinds of Concrete Pump Spare Parts, about the rubber hose , one mobile pump usually have one piece 3m hose, this flexible hose pipe is used on the mobile pump , stationary pump and Mortar pump, to transfer the concrete mud in 360D degree, to make the concrete pumping work nore easily. About the rubber hose material advantage as below:

    (1) Inner wall rubber material: Polyurethane and butyl rubber are used as main raw materials, and special reinforcing agents are used to make rubber compound. finished product. The glue in the black transparent state, has high wear resistance, high toughness, high voltage, smooth, friction resistant concrete, inner adhesive layer can bear the pressure of the conveying medium and protect the steel wire from being eroded.

    (2) strengthen layer : 4 layers of wire wound, the use of copper-plated hose for steel wire weaving, working pressure is 3-4 times the ordinary hose, with a high degree of pressure, resistance to flexion superior performance characteristics, from the enhanced role

    (3)Outer layer rubber :SBR / NR compound, anti-aging, wear resistence.


    concrete pump rubber hoses detailed points :


    steel wire braides rubber end hoseconcrete pump fabric rubber hose
    MaterialNatural rubber/steel wireMaterialNatural rubber/fabric
    size2"-6"size2"-6"
    length1-24mlength1-24m
    reinforcement2/4 layers of steel wirereinforcement2/4/6/8layers of fabric
    working pressure85bar-130barworking pressure85bar
    burst pressure240barburst pressure130bar
    flangeSK/FM/ZX/HD FlangeflangeSK/FM/ZX/HD flange
    colorblack or as client's requirementcolorblack or as client's requirement
    weight12.8kg/mweight12.8kg/m

    Concrete Pump Rubber Hose details:


    Concrete pump rubber hose Section pictures


    Concrete pump rubber hose flange or hose ending picture

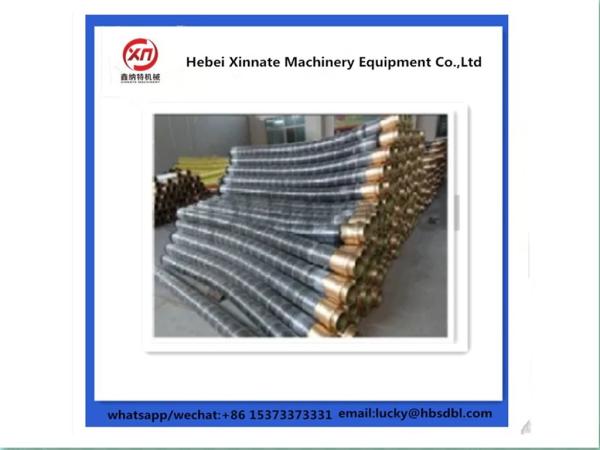

    Concrete pump rubber hose pictures , Steel wire rubber hose


    Concrete pump rubber hose loading container pictures
