    80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump

    Ask Lasest Price
    Brand Name : SDBL
    Model Number : DN200
    Certification : ISO
    Price : negotiable
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : Within 7 days after payment
    • Product Details
    • Company Profile

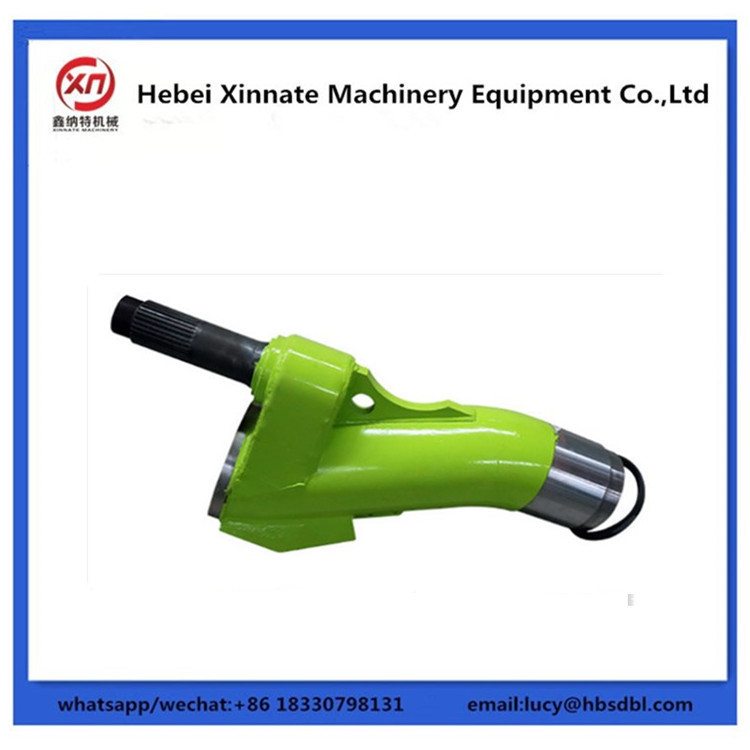

    80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump

    Zoomline Concrete Pump S Valve/Concrete Pump Truck Spare Parts S Valve/DN200 S Valve

    1.Product description

    Zoomline concrete pump S valve is constructed of plate, flanges and splined shafts that have been joined with welding together , the splined shaft is made of 38CrMoAI. Chrome-plated shaft sleeve are made of 45# steel ! seamless carben steel plate steel tube , the chrome layer thickness between 0.12mm-0.16mm. Different pumps use different sizes S valve, also the Concrete Pump Wear Plate and cutting ring ! Our S tube service life is ≥60000cbm. one set agitaing systemn including concrete pump S valve , concrete pump wear plate and wear ring, concrete pump delivery cylinder and so on ! The whole set we can supply for you !

    Product nameZoomline S valve
    Model No.DN200
    MaterialWelded pipe16Mn, shaft 38 CrMoAl, #45 steel, hardf
    HRC≥65
    Working life80000cbm-100000cbm
    UsageUsed on the hopper assembly
    TypeSmall mouth and big mouth
    Shaft size80mm/90mm
    Other brand S valveSany/zoomline/schwing/IHI

    2.S valve introduce

    The s valve is a key component of the concrete pump. It is located in the hopper to connect the conveying cylinder and the conveying pipe to coordinate the action of each component, so it directly affects the performance of the concrete pump and also directly affects the overall design of the concrete pump. The pipe body of the S pipe valve has two forms: variable diameter and constant diameter. Its characteristics can rely on the pressure of the concrete to push the cutting ring to automatically seal the nozzle. The sealing performance is good, so that the concrete pump has a strong delivery capacity, and the flow channel is smooth and not easy to block.

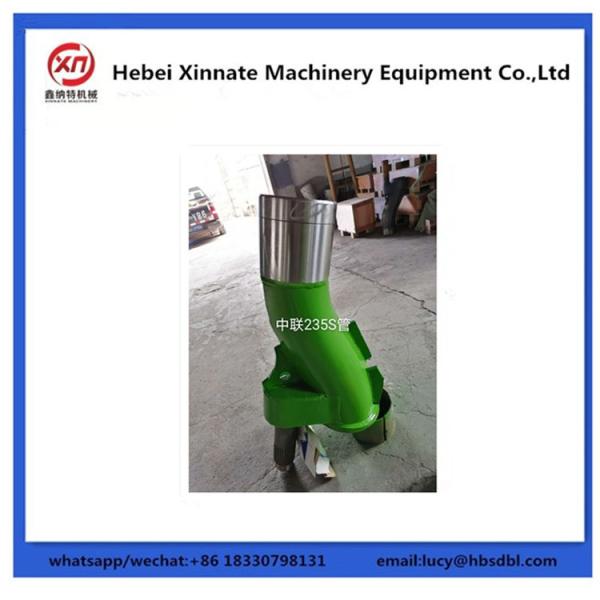

    80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump

    3.S valve performance

    (1)Good material, strong and durable

    (2)Stable quality, not afraid of impact

    (3)Safe and reliable, easy to operate

    (4)Super wear-resistant, long service life


    4.Other concrete wear parts

    80mm 90mm DN200 Zoomlion Concrete Pump Parts S Valve Concrete Pump

    you are welcome to inquire.
