Concrete Pump Spare Parts Twin Wall Elbow/Double Layer Wear-Resistant Elbow

1.Product description

(1) Produce name: Concrete pump twin wall elbow/concrete pump double layer bend

(2) Degree: 10D/15D/30D/45D/90D

(3) Material: Q235+65Mn / 20#+alloy steel

(4) Bend Radius: R180/R190.5/R240/R275

(5) Working life: 30000cbm-50000cbm

(6) Thickness: inner arc thickness: 10mm-11mm, outer pipe thickness:3-4mm, welding end thickness: 7-8mm

About this concrete pump twin wall elbow, we have two types, one kind double layer elbow material is Q235+65Mn, inner wall bend through heat treatment, in order to improve the elbow hardness, so the toughness of the inner elbow is not so strong, but this kind of elbow is fragile, service life is about 30000cbm. Also have one kind double layer bend, the inner wall elbow is alloy steel, high wear resistence degree, delivery capacity is more longer, about 50000cbm. we usually exported this elbow to European countries.

2.Elbow detail display

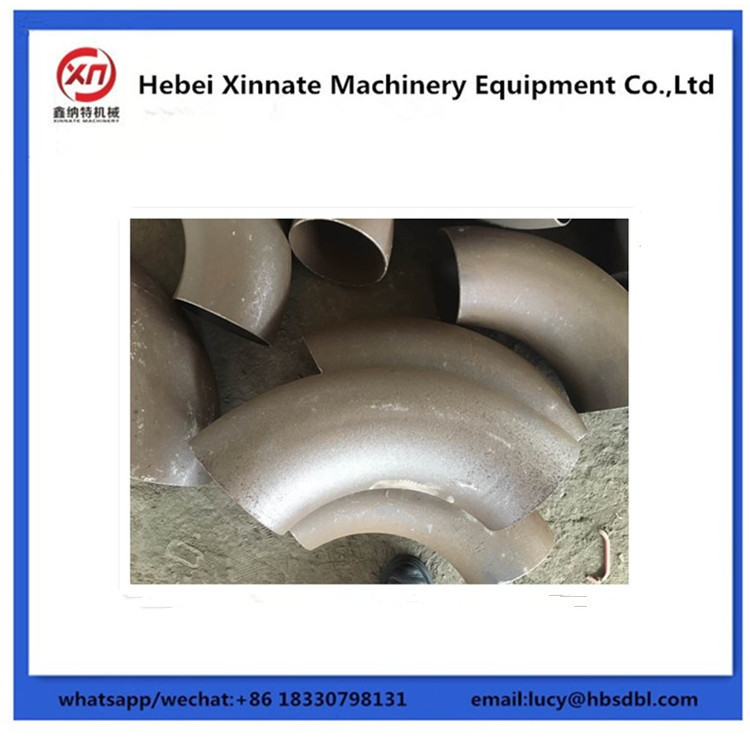

3.Double layer elbow skin display

Double-layer elbow with high stability and service life,apply to SANY,ZOOMLION,SCHWING,PUTZMEISTER,CIFA,JUNJIN,KCP,SERMAC ETC.

4.Daily packing display

5.Contact me

       Hebei Xinnate Machinery Equipment Co., Ltd was established in 2007, the registered capital is one million RMB. Our factory is a private enterprise integrating R&D, production, sales and trade. The company is located in China's pipeline equipment manufacturing base - Yanshan County, Cangzhou City, Hebei Province. It is close to Tianjin in the north and only 150 kilometers away from Tianjin Port. The transportation is very convenient.

       The factory covers a total area of 15,000 square meters. Which is engaged in the concrete pump pipe production business line for over 20 years , and specialized in international trading about 10 years . Our company has 30 employees, including 6 management, 8 engineers, 10 professional and technical personnel, and 10 international sales personnel and some basic workers.In our factory, there are three kinds of worshops ,including concrete pump pipe production workshop,reducer pipe processing workshop, and batching workshop.All the production processings are automatic . There is not only has the supporting facilities for the production of pipe fittings, but also has a wearing spare parts warehouse to provide customers with more convenient services.And our wear parts are widely used in the concrete pumping business line ,our pipes inner wall usually through heat treatment , so that can improve the pipe wear resistence degree and service life.

The company's products are sold with high quality and are exported to overseas. They are mainly distributed in Europe, Germany, Spain, Poland, Asia, Malaysia, India, Australia, and the United States so on many countries in the world.

        Our company main parts are concrete pump pipe,concrete pump reducer pipe ,concrete pump elbow, concrete pump flange, concrete pump clamp coupling and concrete pump rubber hose , And in our warehouse stocks include Putzmeister, Sany, schwing,zoomline,IHI,Kyokuto and other brands of pump wear parts, such as wear plate, cutting ring, conveying cylinder, S valve, plunger cylinder, swing lever, hopper complete and other wear parts. In addition, our company has good cooperation with domestic concrete machinery enterprises, and also exports concrete machinery, such as stationary pump, boom placer, hydraulic krete placer, etc concrete pumping machine , and strive to complete the product chain to provide customers with more perfect and complete services.

        These two years , we complete our business line again , not only have concrete pump parts at stock , also have mixer truck parts , batching plant spare parts .

        Our Service philosophy is Customer first, dedicated service .Brand spirit is Pursue high quality products and services,business philosophy isWin-win cooperation and steady progress.

         You give me a chance , we start cooperation , then you will get surprise !
